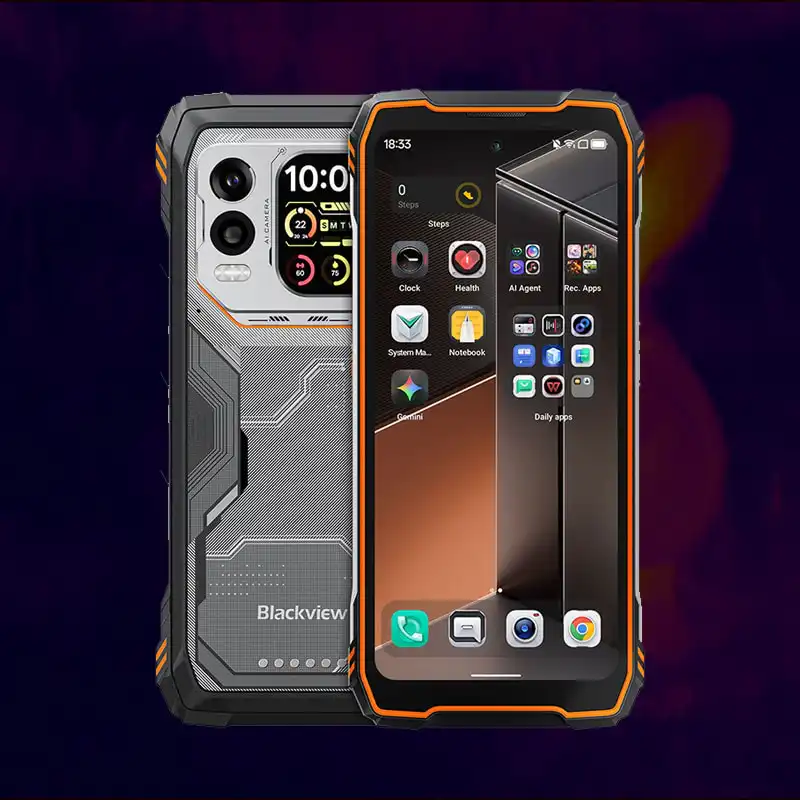

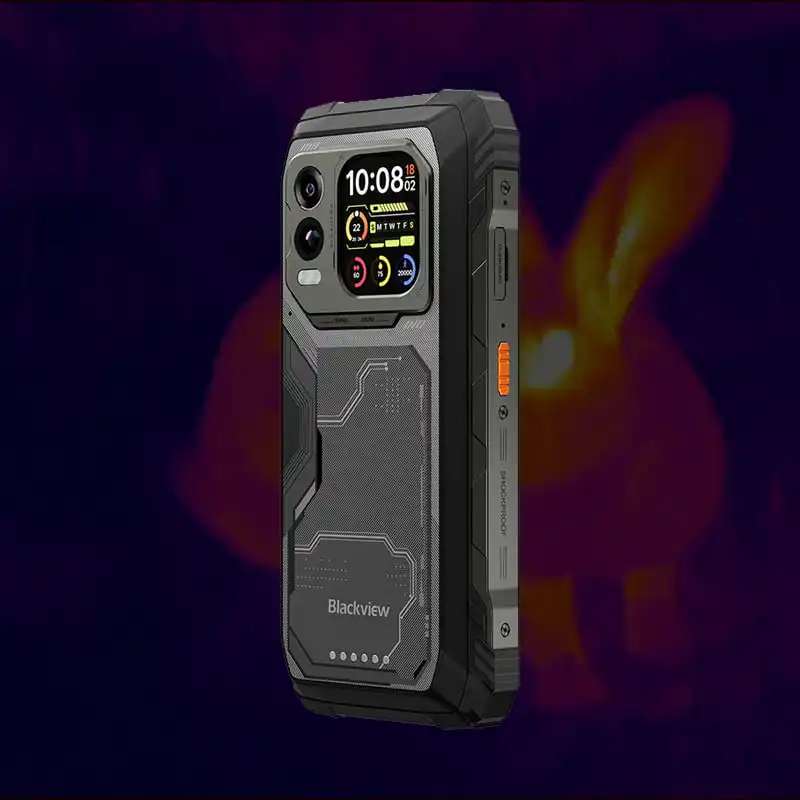

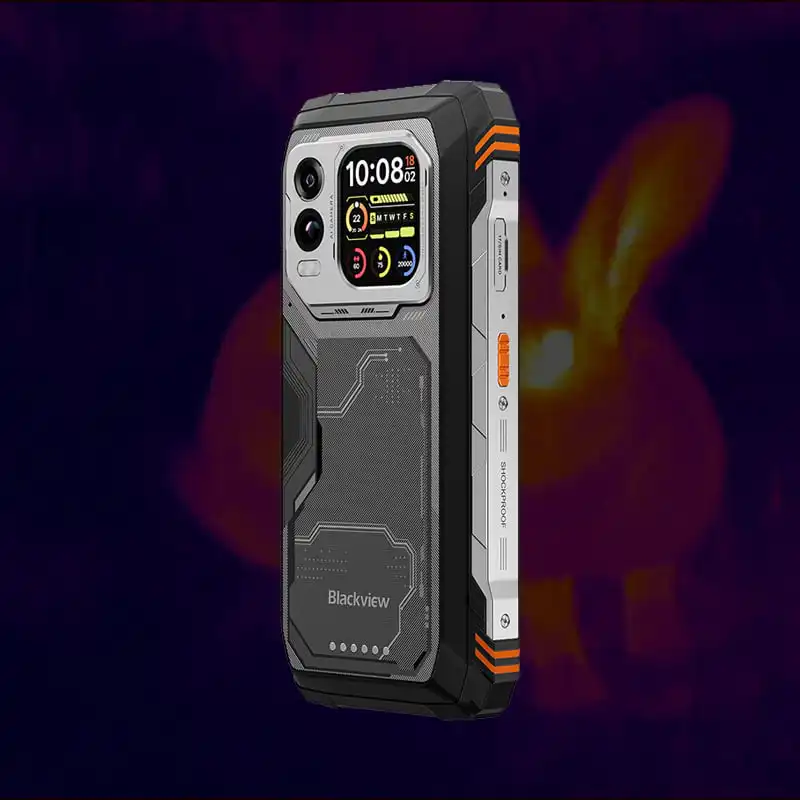

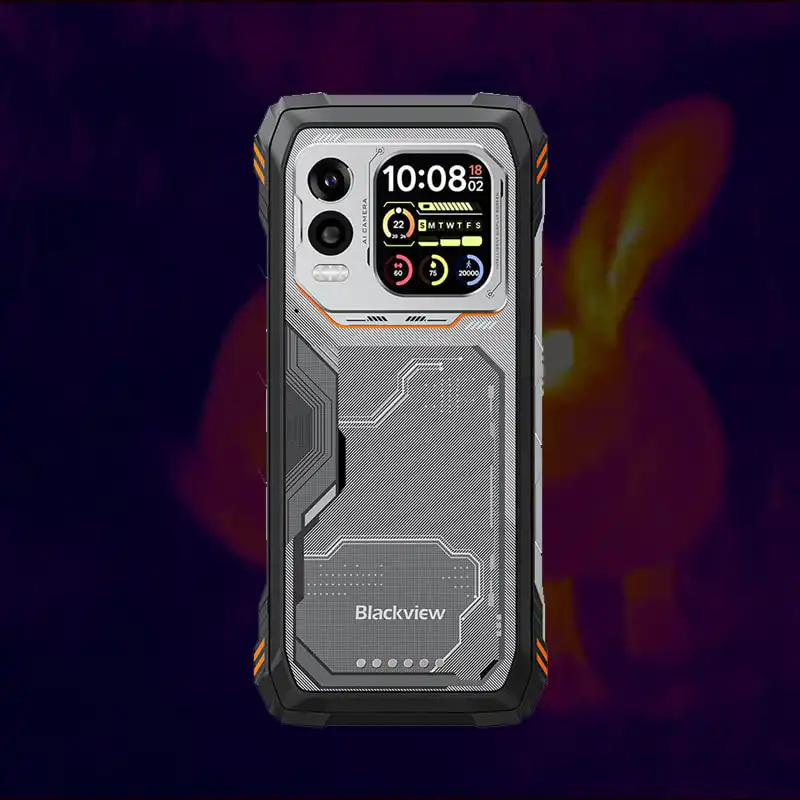

Blackview XPLORE 1 Pro 5G Thermal Rugged Smartphone with 16GB+512GB, 20000mAh Battery, MediaTek Dimensity 7050 Processor, 6.78″ FHD+ 120Hz Dual Display - Image 1

Click to enlarge

Blackview XPLORE 1 Pro 5G Thermal Rugged Smartphone with 16GB+512GB, 20000mAh Battery, MediaTek Dimensity 7050 Processor, 6.78″ FHD+ 120Hz Dual Display

Name: Blackview XPLORE 1 Pro 5G Thermal Rugged Smartphone with 16GB+512GB, 20000mAh Battery, MediaTek Dimensity 7050 Processor, 6.78″ FHD+ 120Hz Dual Display
SKU: Blackview XPLORE 1 Pro
Price: 629.99 USD
Availability: InStock

0 days 00 hr 00 min 00 sc

Price range: $629.99 through $789.99

Color

Version

Clear

1. Get $30 OFF For First Order,Ending Soon
2. Get Extra $30 OFF, Use Code: TM30 over $600
3. Get Extra $120 OFF,Use Code: TM120 over $1200
4. Get a 20% OFF code after ordered

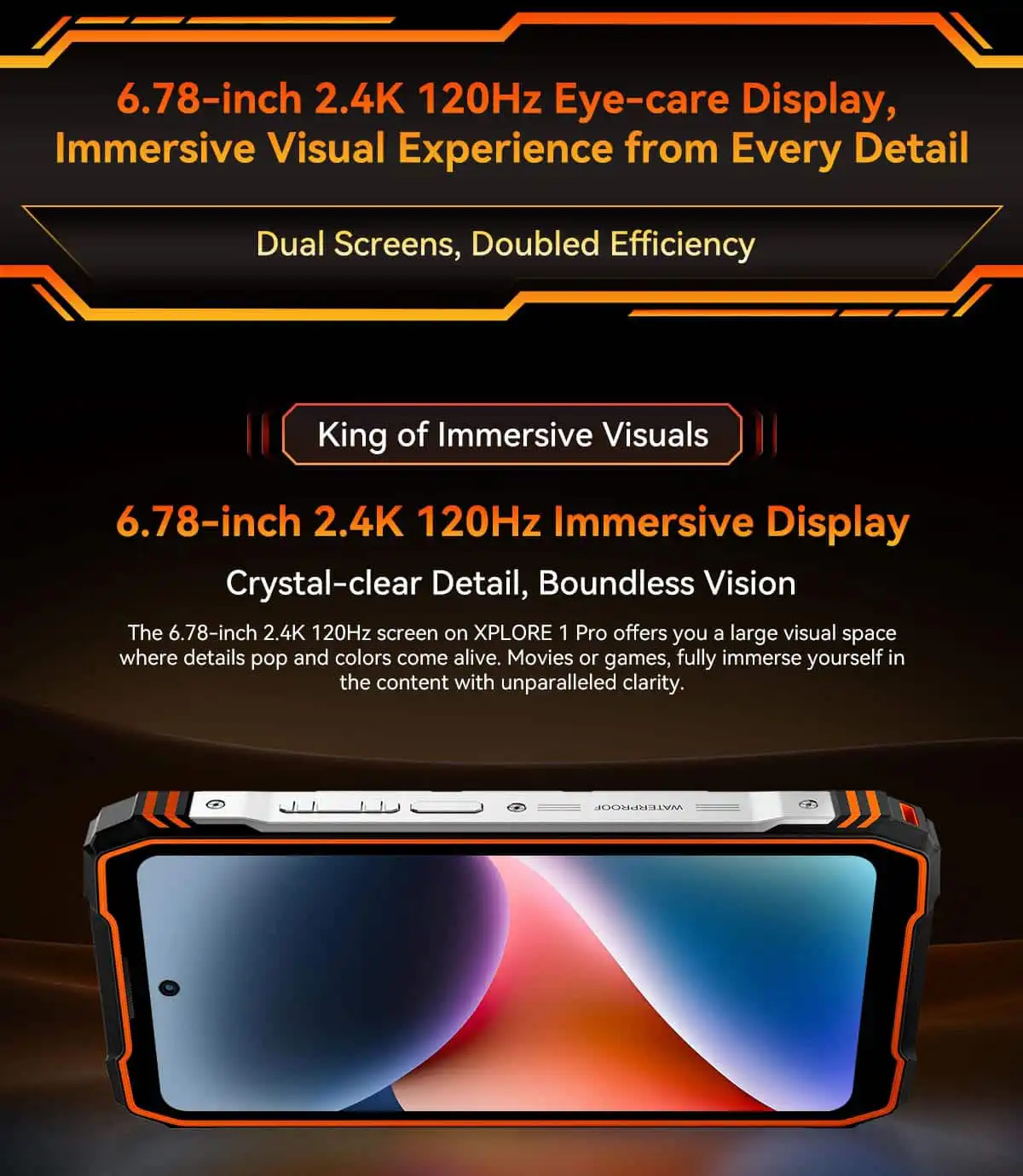

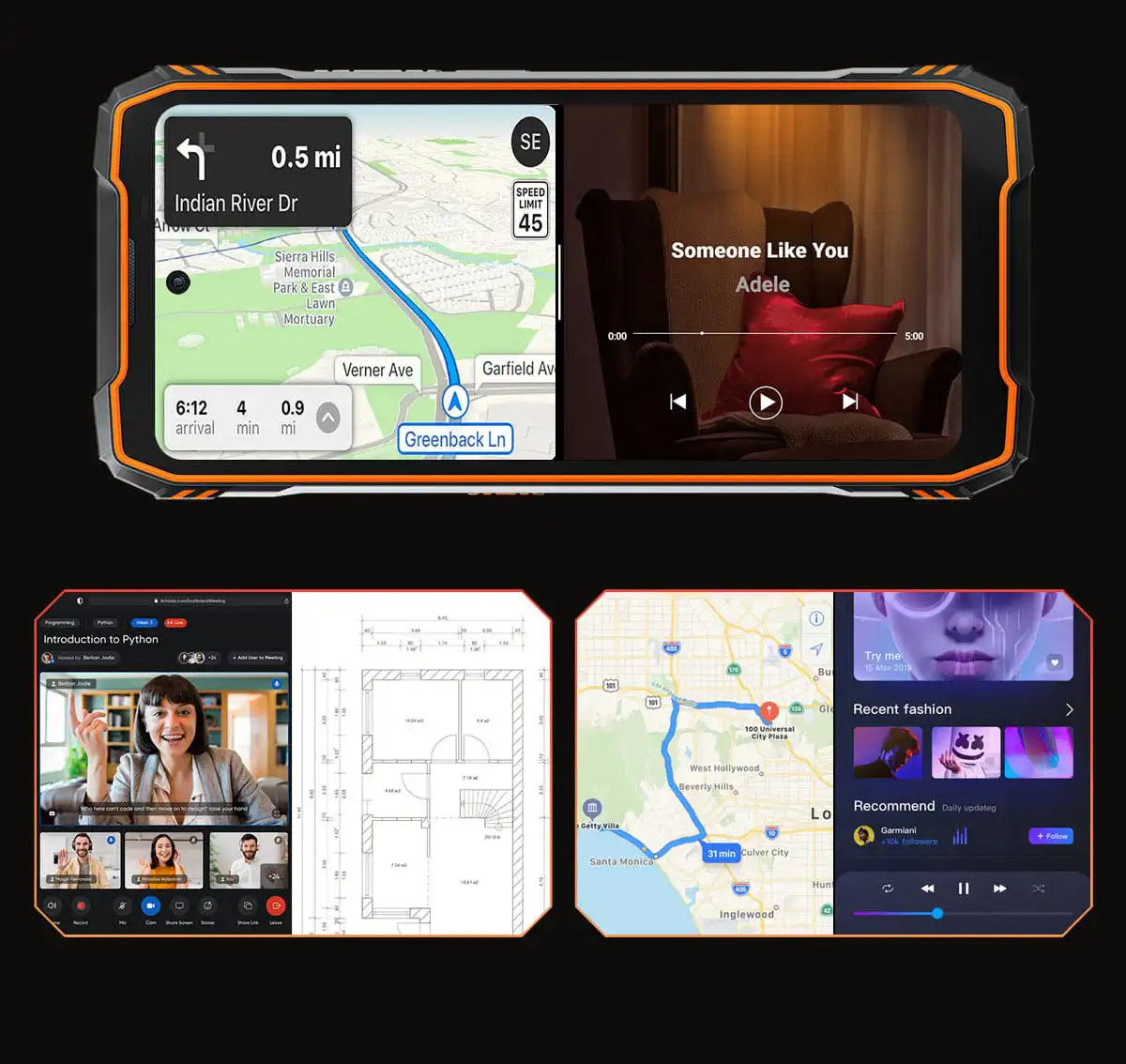

【6.78″ FHD+ 120Hz Main Display with Secondary Screen】 The 6.78-inch 1080×2460 FHD+ display delivers smooth 120Hz visuals, while the 2.01-inch secondary screen provides quick access to notifications, shortcuts, and useful outdoor functions.

【Dimensity 7050 5G with Fast Memory & Storage】 Powered by the 6nm MediaTek Dimensity 7050 octa-core platform, the phone combines LPDDR5 RAM and UFS 3.1 storage for responsive multitasking, smooth gaming, and efficient everyday performance.

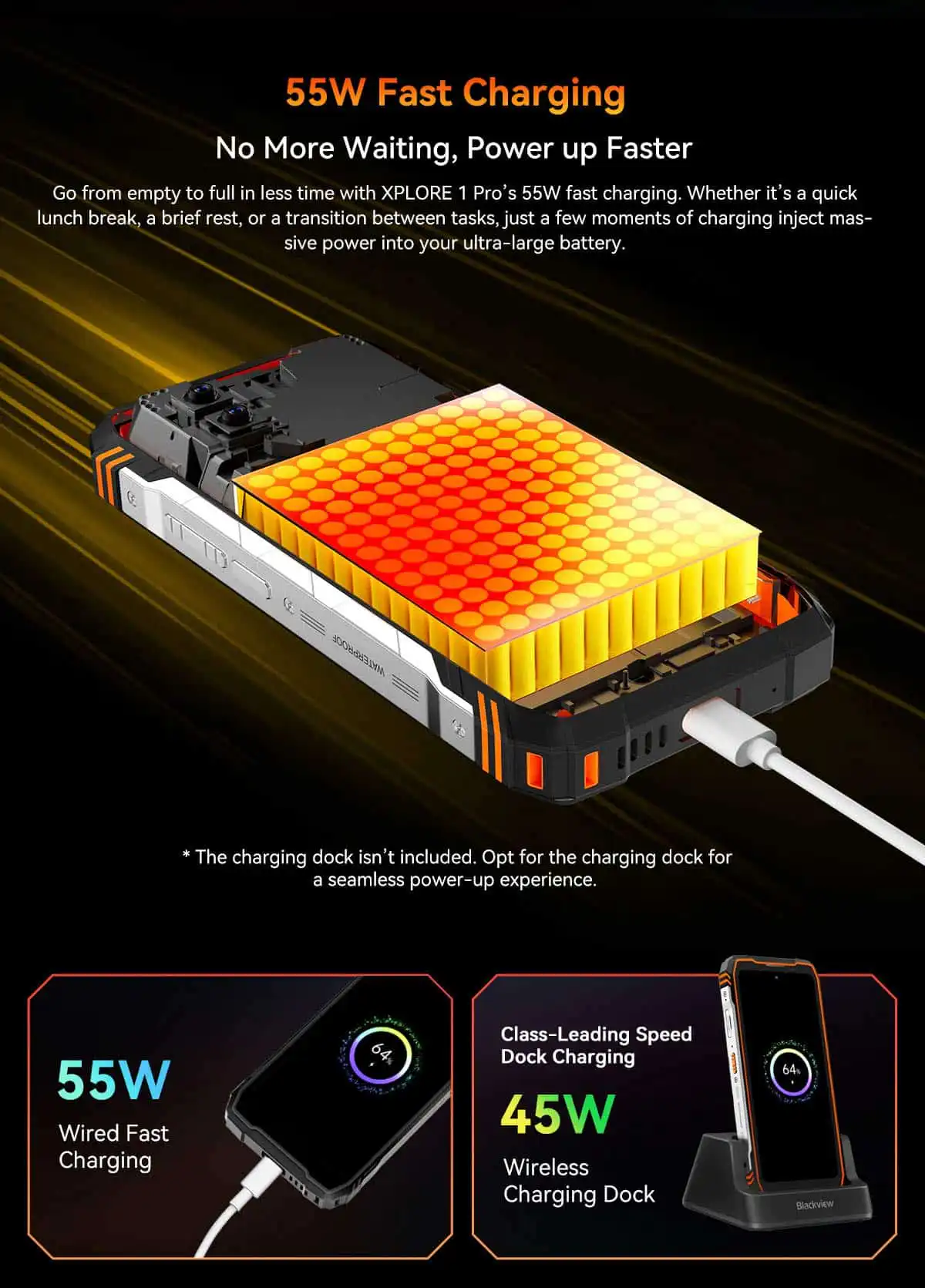

【20,000mAh Battery with 55W Fast Charging】 The high-capacity 20,000mAh battery is designed for extended outdoor use and demanding tasks. 55W fast charging helps reduce charging time, while reverse charging allows the phone to supply power to other devices.

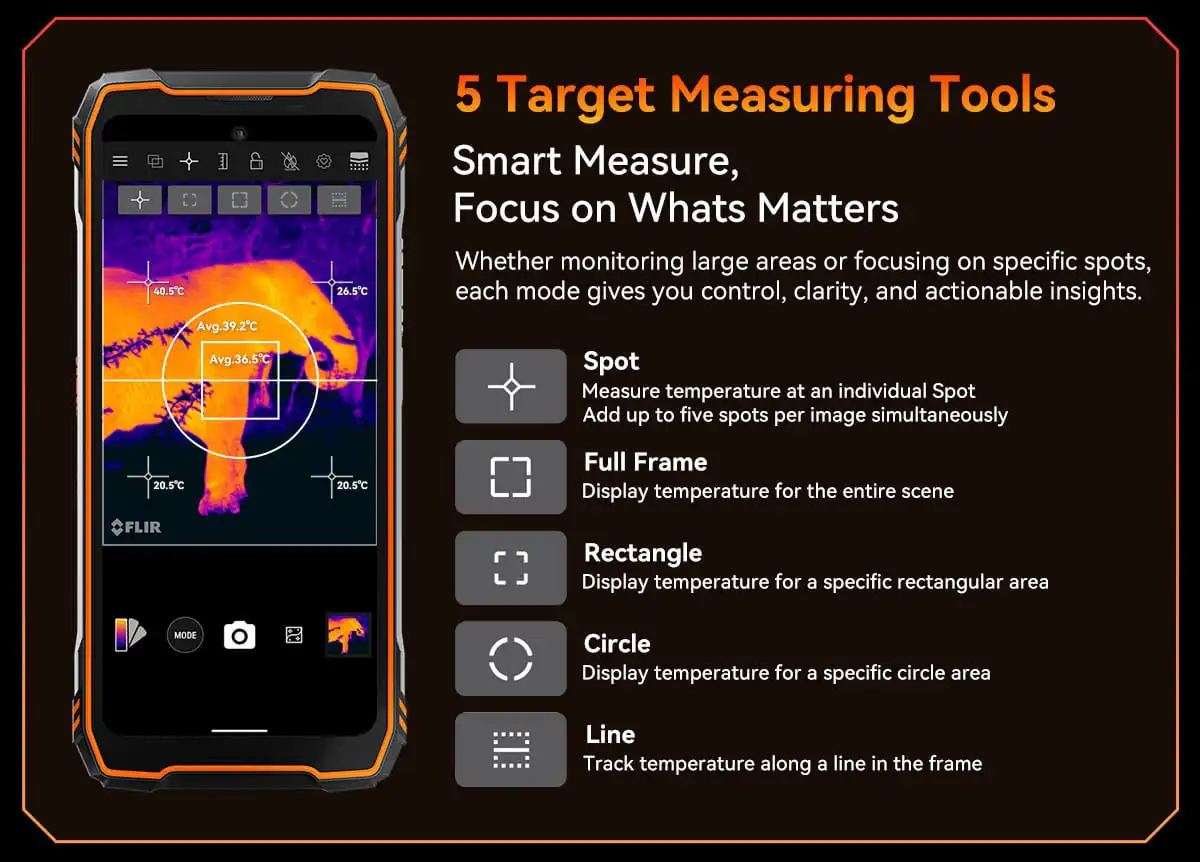

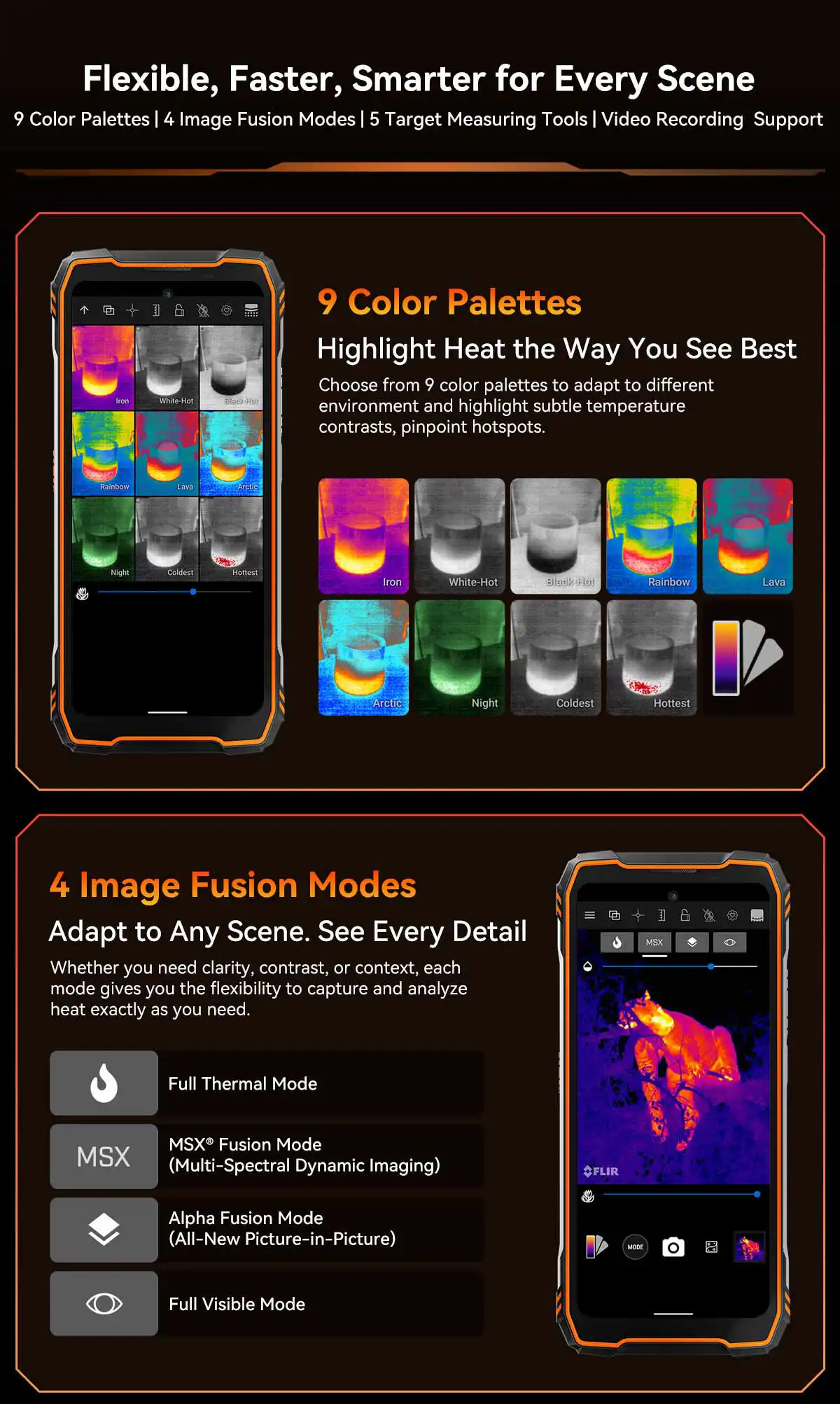

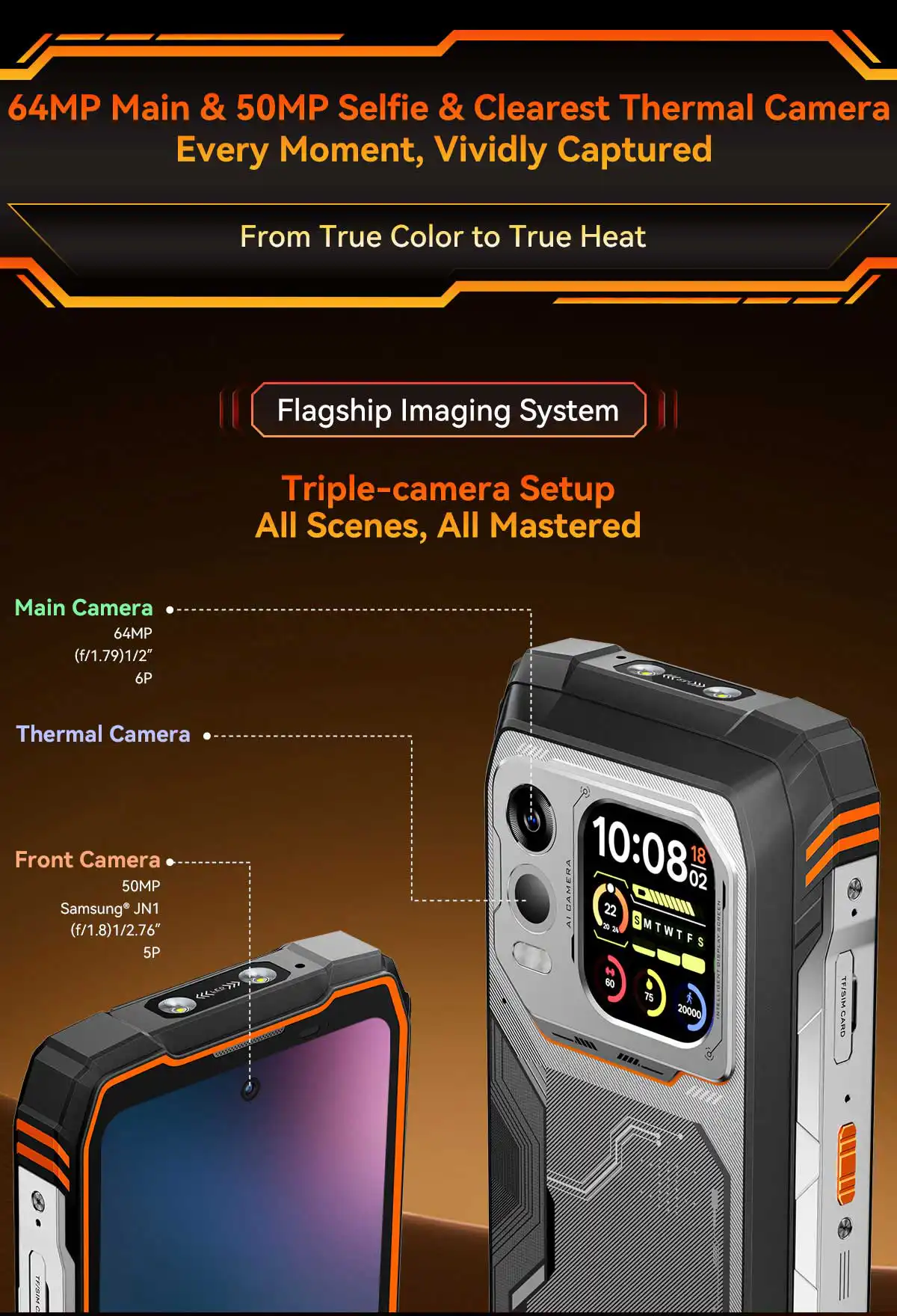

【64MP Camera with FLIR Thermal Imaging】 A 64MP main camera works alongside a FLIR Lepton 3.5 thermal sensor to support detailed photography, night vision, temperature detection, and thermal inspection for demanding field applications.

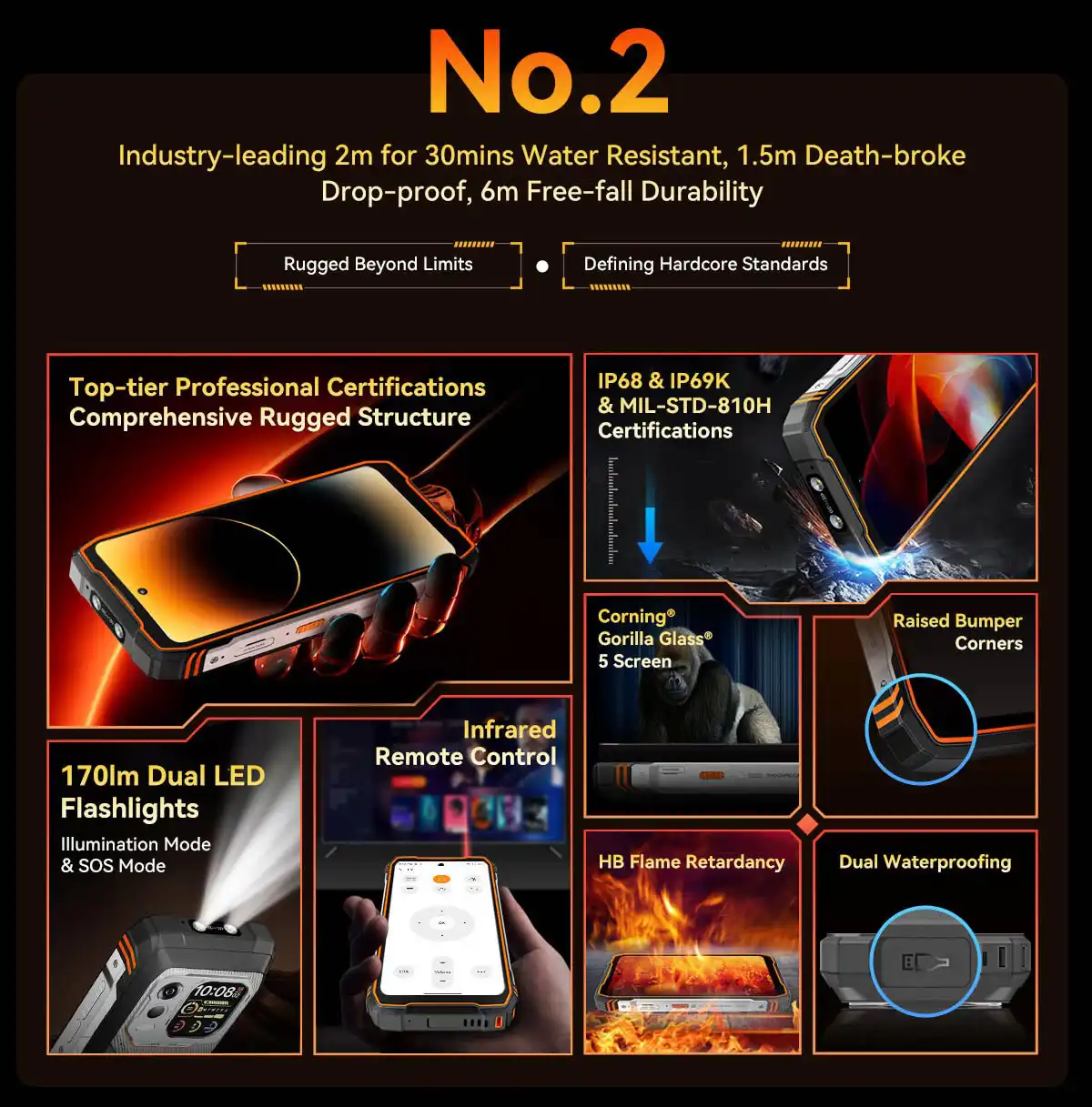

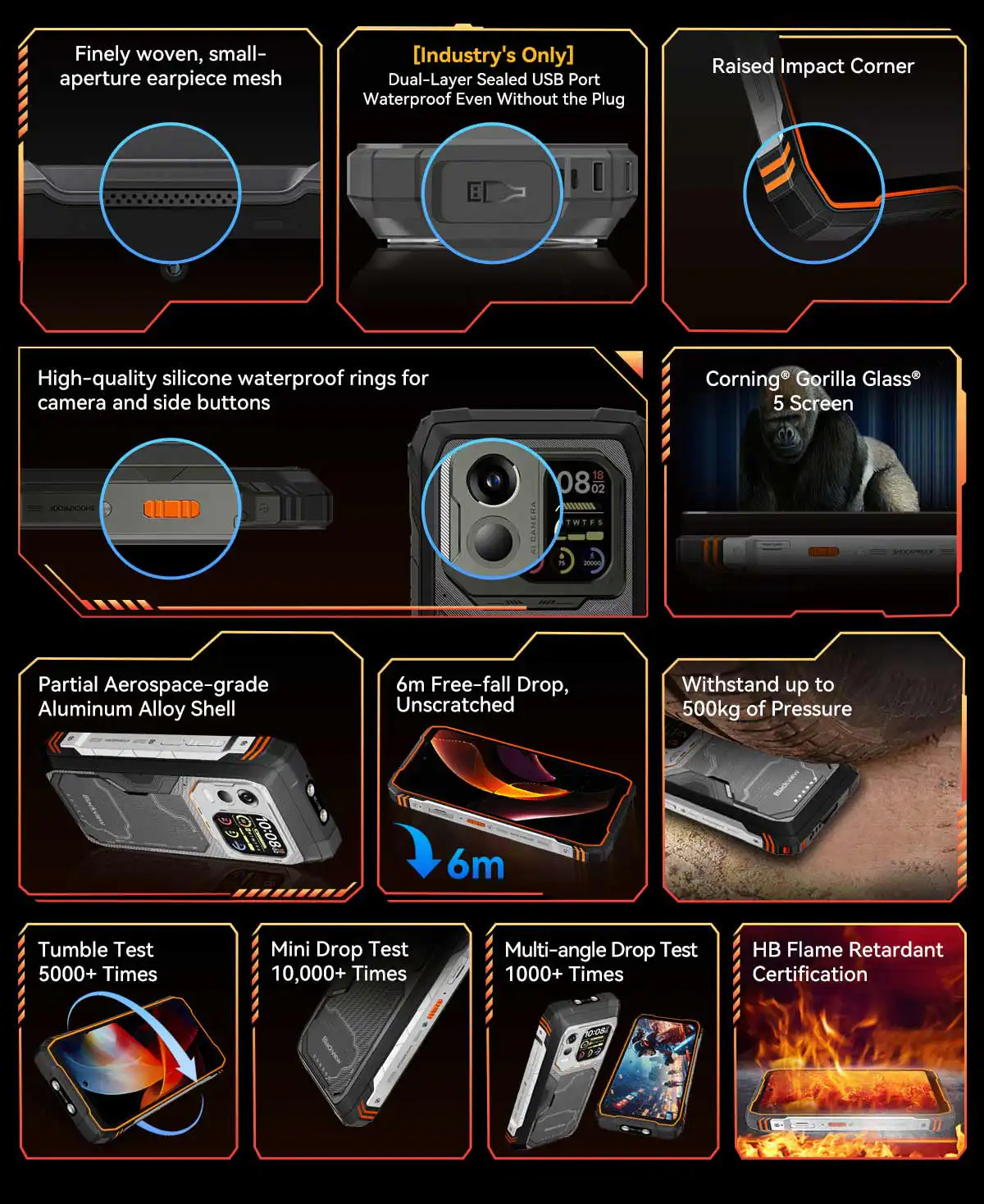

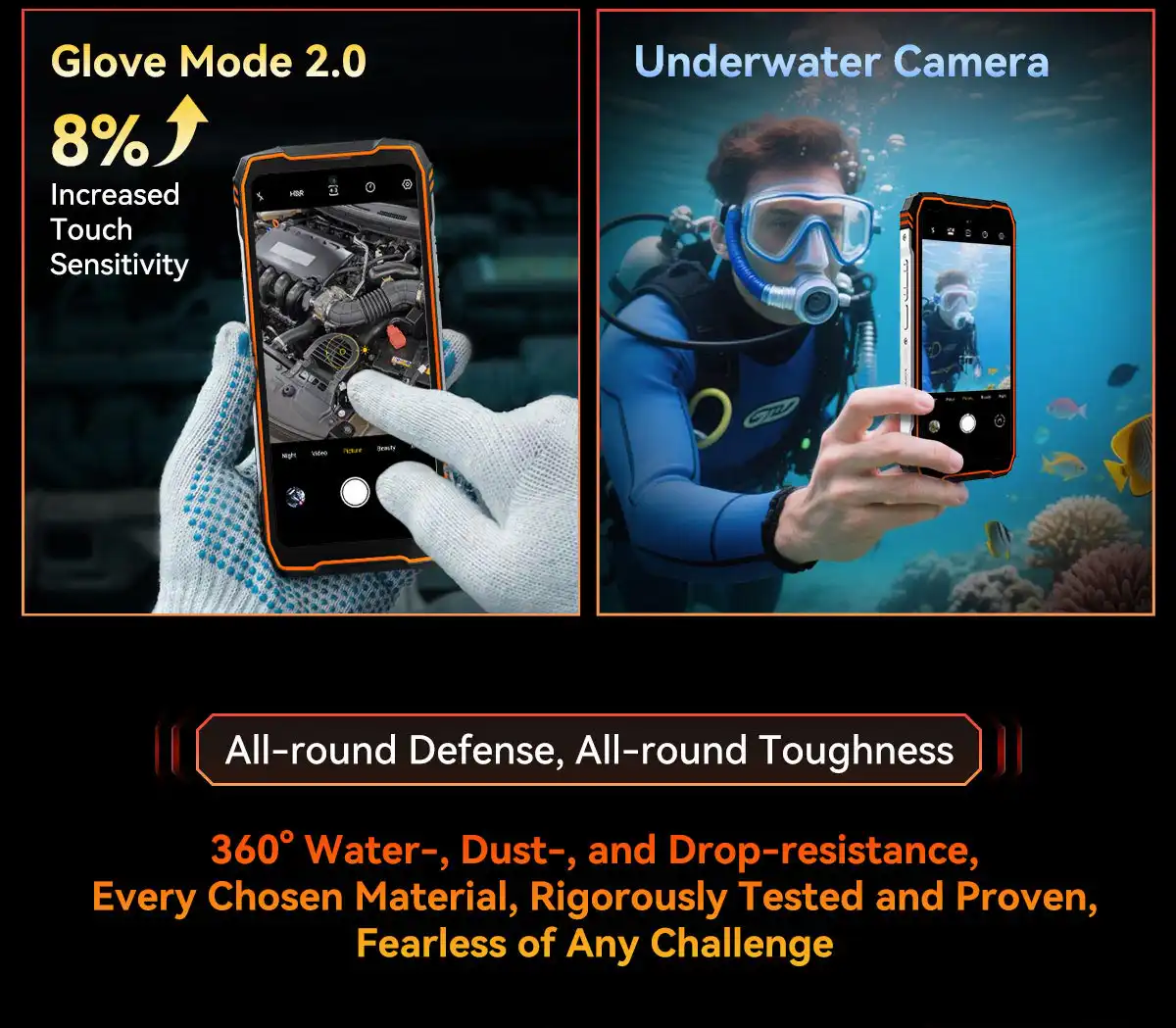

【IP68/IP69K & MIL-STD-810H Rugged Protection】 Built for harsh environments, the phone features IP68/IP69K water and dust resistance and MIL-STD-810H durability. Wi-Fi 6, NFC, multi-satellite positioning, and infrared remote control provide added connectivity and convenience outdoors.

Secure Payment Methods:

No import charges or extra fees upon delivery

3-year warranty with 100% authentic products

30-day free returns and price adjustments

Secure payments and purchase protection

Expert Optinion For Your Buying Verdict

Imaging and Detection Value - 88%

88%
Viewing and Field Usability - 92%

92%
Feature Integration - 93%

93%
Power and Connectivity - 95%

95%
Fit for the Intended Workflow - 92%

92%

92%

Best Uses and Buyer Fit

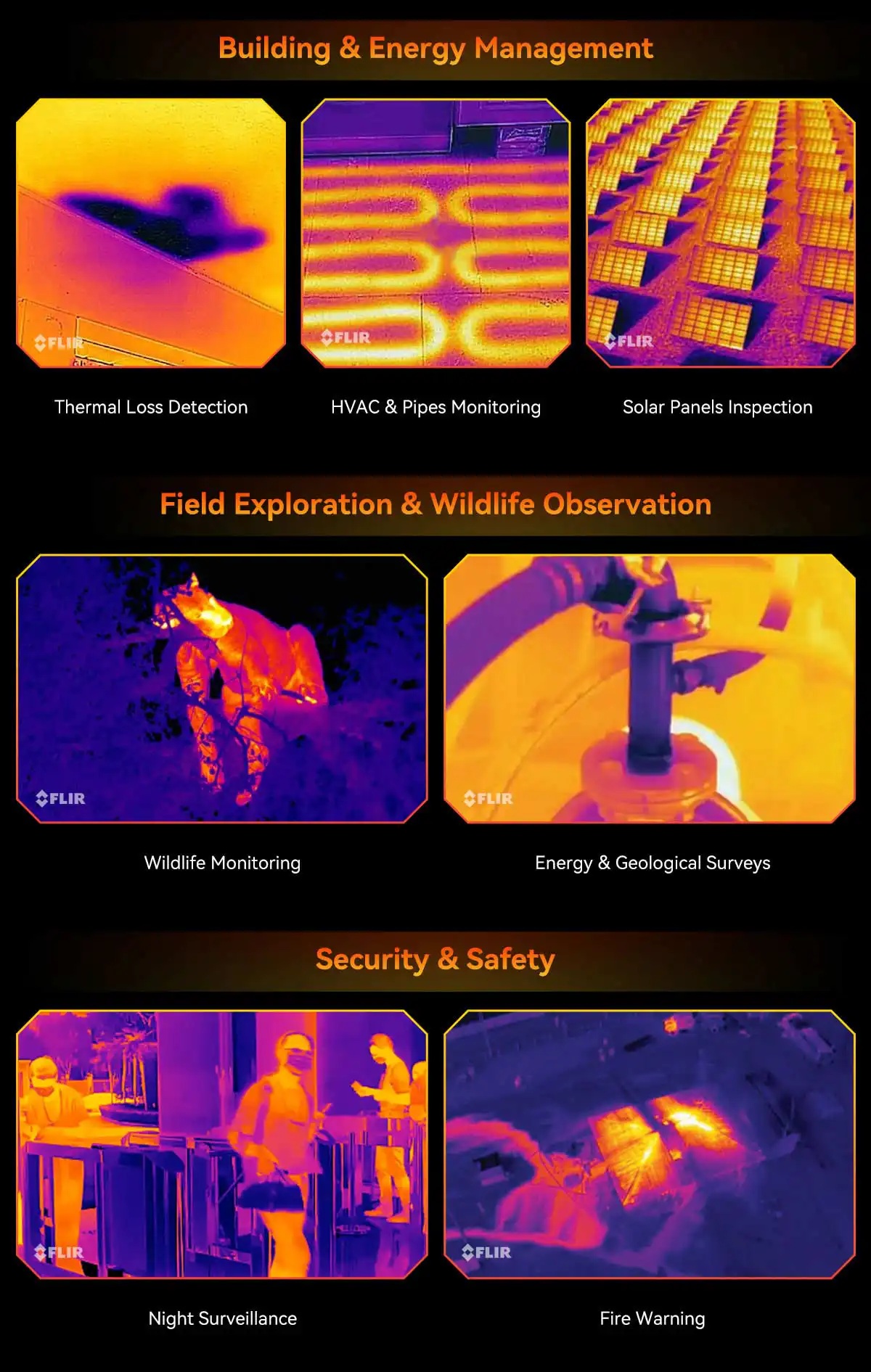

Use cases: Extended thermal inspection, remote reporting and outdoor field work where battery endurance matters.

Best for: Field teams wanting flir thermal imaging, 5g communication and very long battery life in one device.

Benefits: Flir lepton 3.5 thermal imaging covers rapid heat-pattern checks, while the dual display, large memory and 20000mah battery support long assignments.

Ideal buyer profiles: Maintenance supervisors, utility crews and remote workers who need to inspect, document and communicate from one rugged phone.

Pros

FLIR Lepton 3.5 thermal imaging turns hidden heat patterns into fast visual clues for equipment, building and field checks
A 20000mAh battery and 55W charging reduce downtime during long shifts away from reliable mains power
5G, Wi-Fi 6 and 16GB+512GB options support rapid sharing, large reports and demanding field apps
The main 6.78-inch FHD+ 120Hz screen and secondary display keep key information accessible during active work
Thermal ranges listed up to 400°C broaden the phone’s usefulness beyond basic comfort and household checks

Cons

The 640g body favors endurance and protection over pocket-light portability
The 8.7Hz thermal frame rate is better suited to deliberate inspection than fast-moving thermal tracking
Confirm the selected RAM and storage configuration before ordering
Check supported 5G bands and FLIR workflow requirements for the intended region

Blackview XPLORE 1 Pro 5G Thermal Rugged Smartphone with 16GB+512GB, 20000mAh Battery, MediaTek Dimensity 7050 Processor, 6.78″ FHD+ 120Hz Dual Display

Design

Product Blackview XPLORE 1 Pro

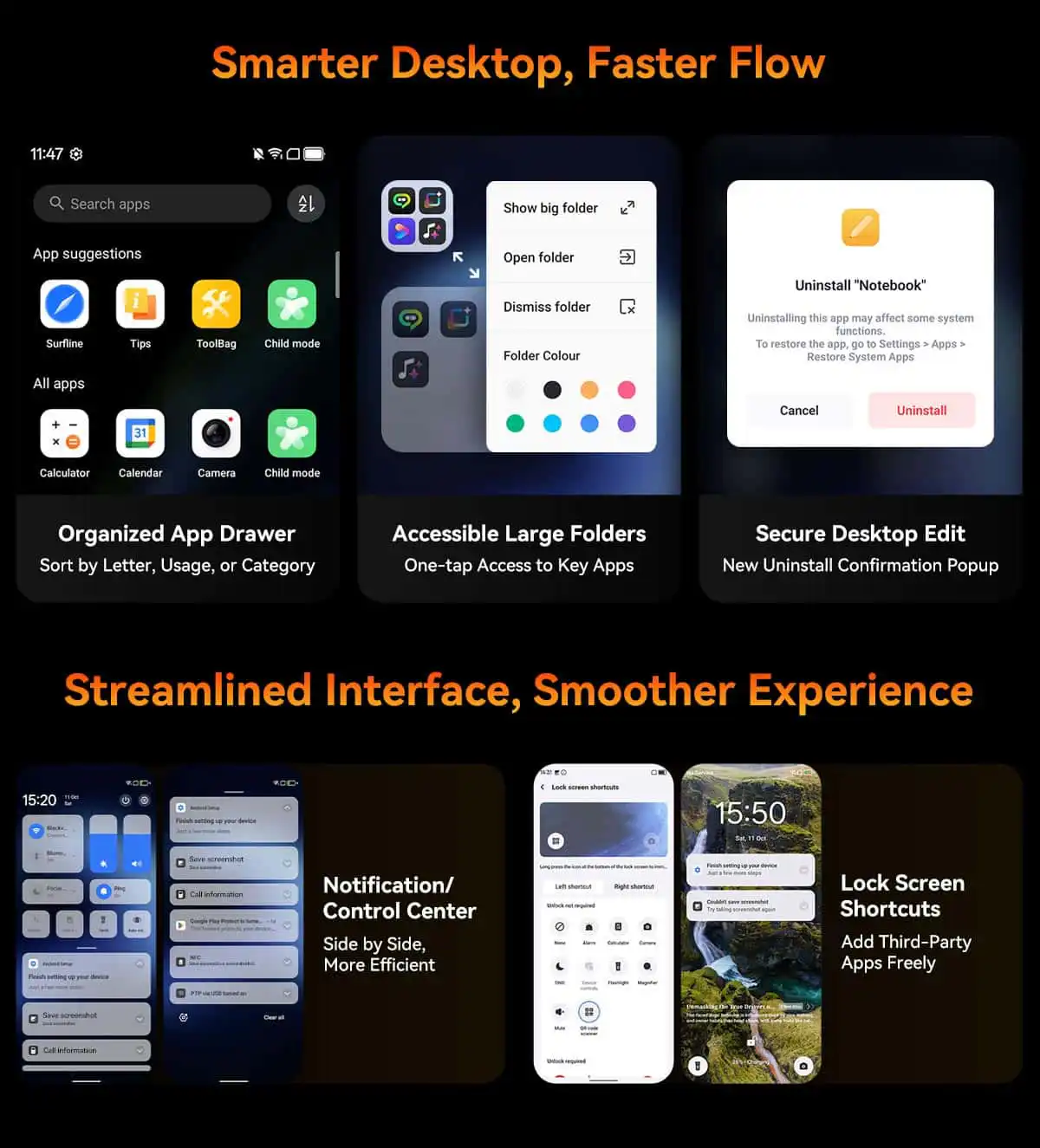

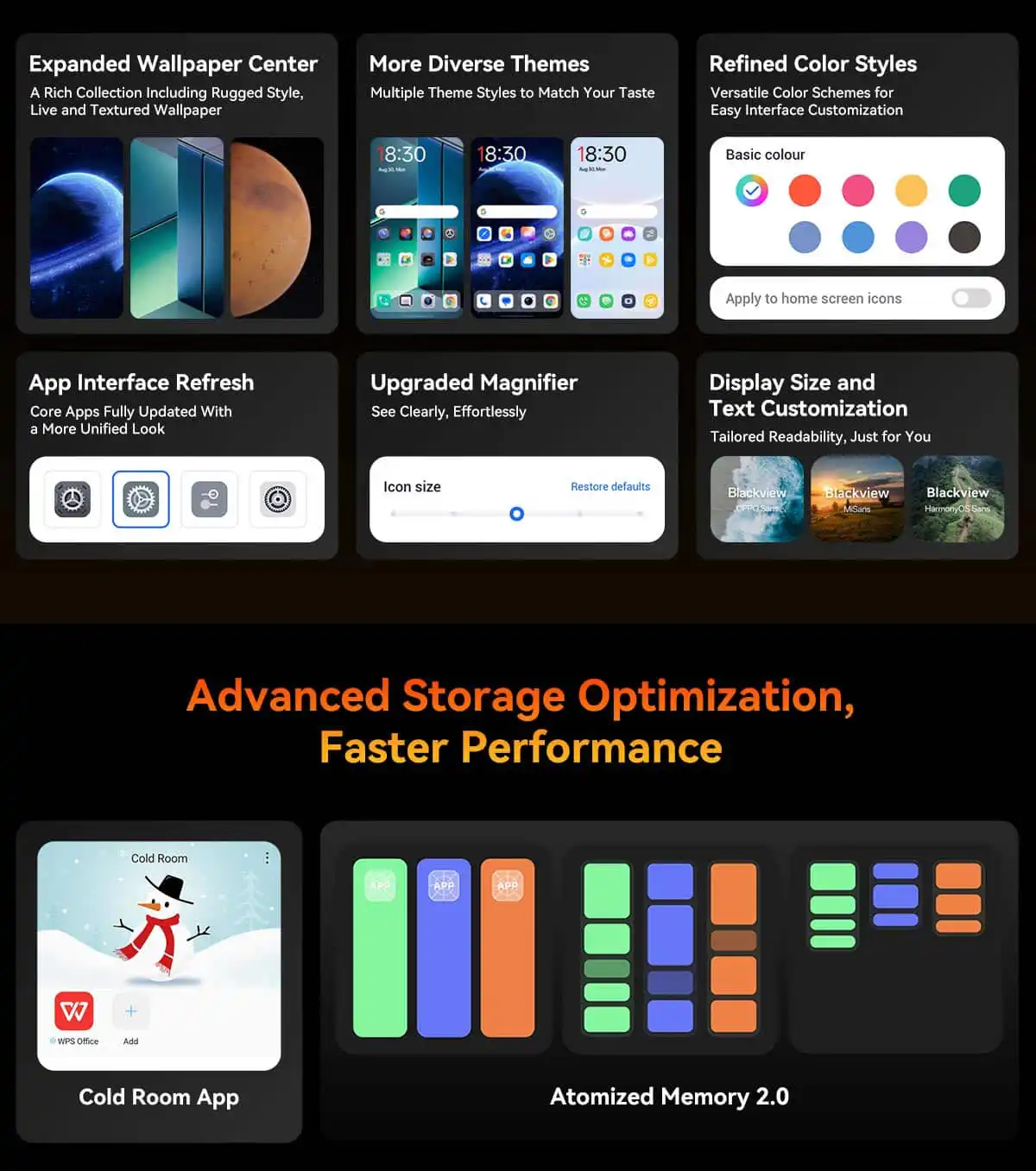

OS DokeOS 5.0 Based on Android 15
Color Black, Orange
Weight 640g
Dimensions 184×83×29.5mm

Screen

Main Display
LCD panel BOE I680EBQ-12Q01X
IC ILI7807S-10000IA
Panel Type IPS
Display Resolution FHD+
Screen Size 6.78 Inch
Screen Resolution 1080*2460 20:9
Screen to Body Ratio (%) 86%
Viewing angle (H/V) Full angle
PPI/DPI PPI: 396
Refresh frequency 120HZ
Glass Corning® Gorilla® Glass 5

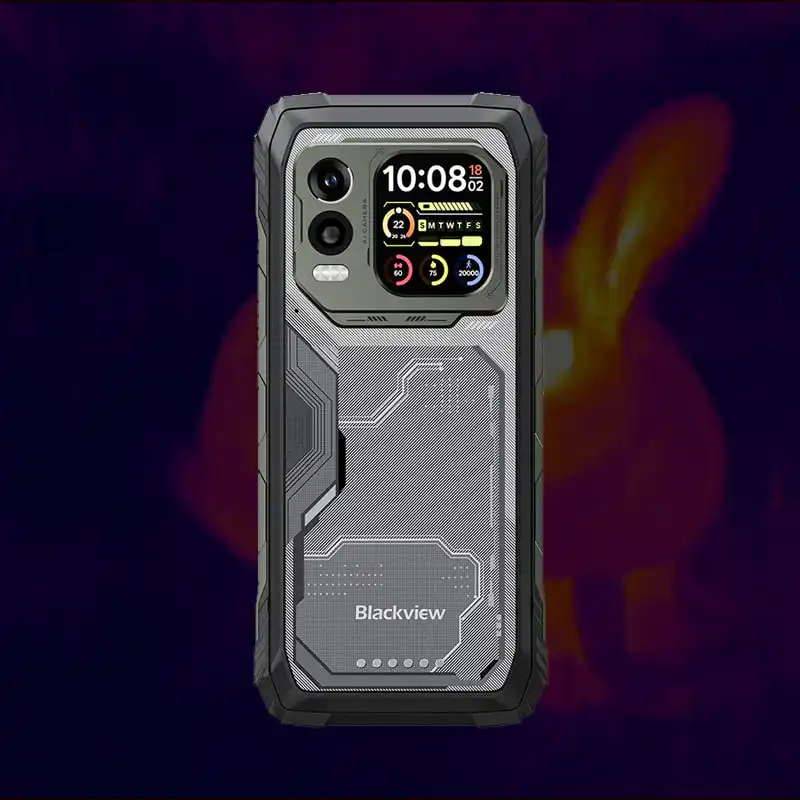

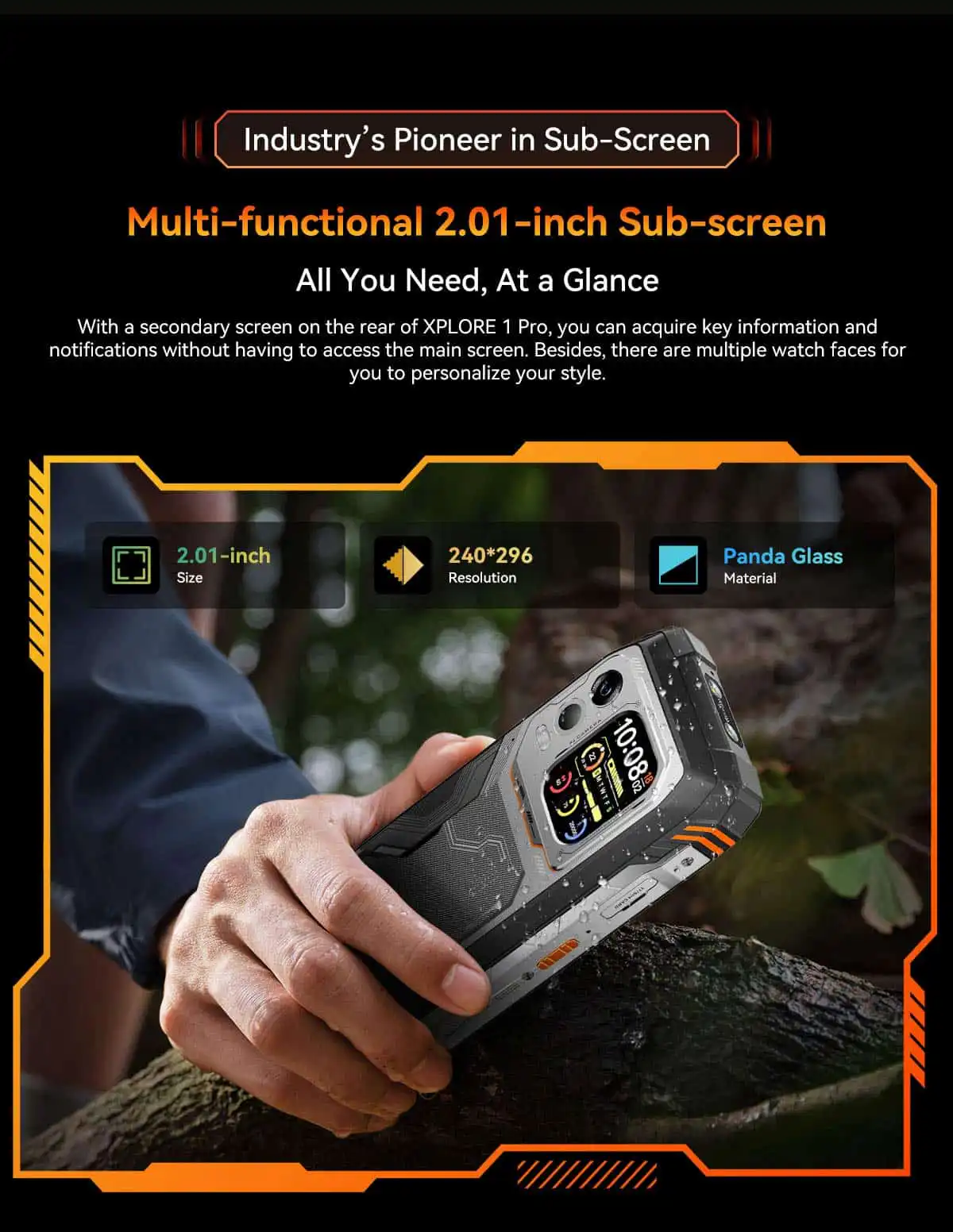

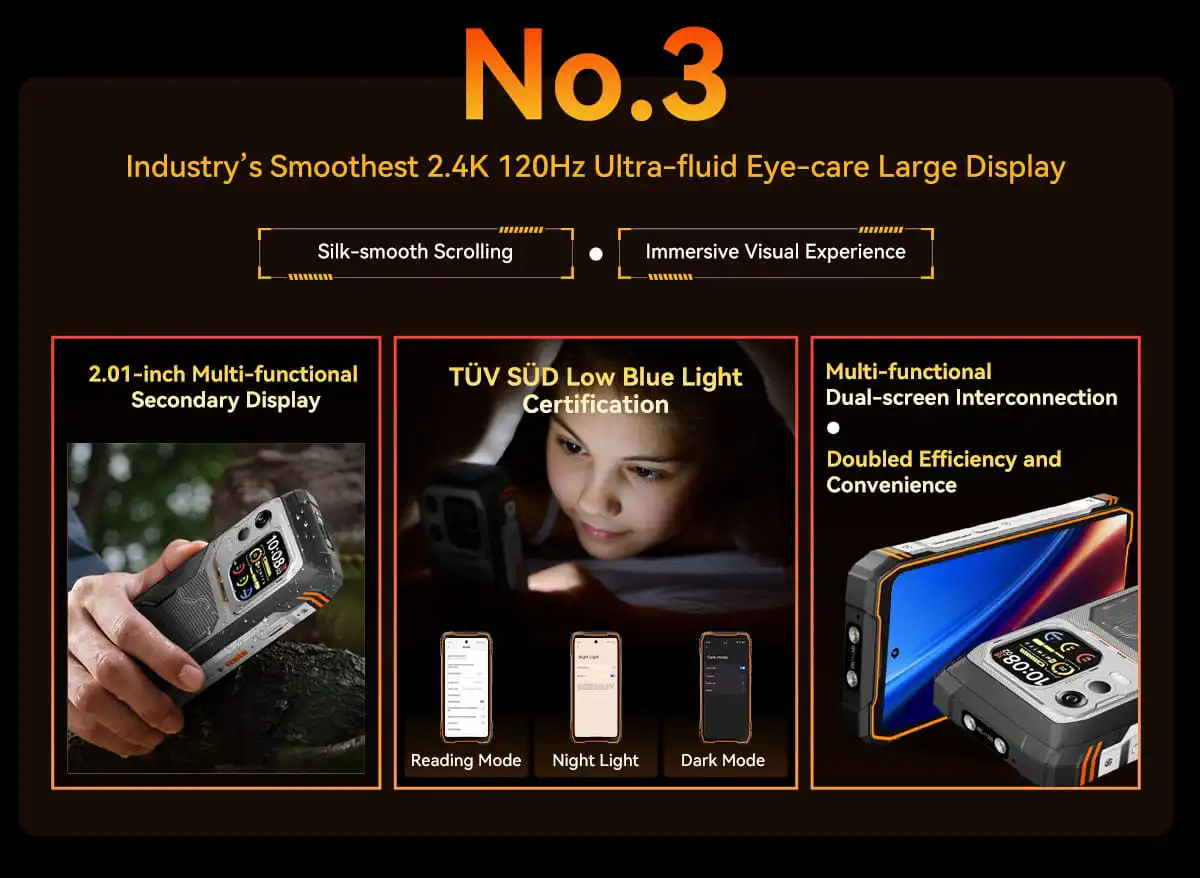

Secondary Display
Screen Size 2.01 Inch
Screen Resolution 240*296
Glass Panda Glass

Connectivity

WIFI WiFi 6(IEEE802.11a/b/g/n/ac/ax)
Bluetooth V5.2
2G B2/B3/B5/B8
3G WCDMA: B1/B2/B4/B5/B6/B8/B19
CDMA: BC0/BC1/BC10
4G TDD: B34/B38/B39/B40/B41
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28a/B28b/B30/B66
5G N1/3/5/7/8/20/28/38/40/41/77/78

Hardware

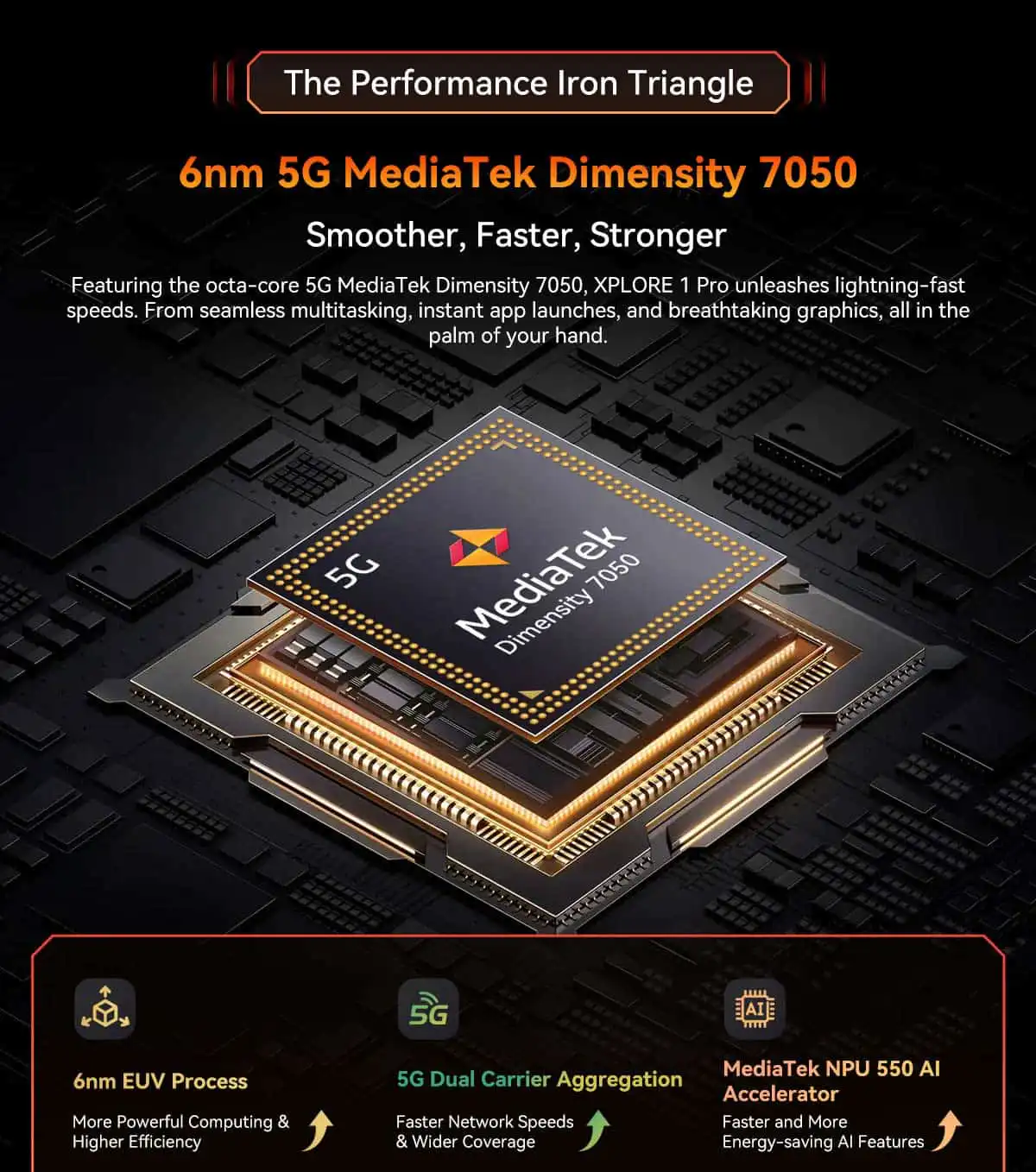

CPU MediaTek Dimensity 7050 (6nm), Octa-core, Up to 2.4GHz
CPU Clock ARM Cortex-A78 cores @ 2.4GHz*2， ARM Cortex-A55 cores @ 2.0GHz*6
GPU ARM Mali-G68 MC4
RAM 12GB/16GB
RAM Type LPDDR5
ROM 256GB/512GB
ROM Type UFS3.1
TF Card Slot YES
Max TF Card Capacity 2TB
USB TYPE-C

Camera

Front Camera 50MP
Front Camera Sensor Samsung® ISOCELL JN1
Front Camera Aperture f2.45

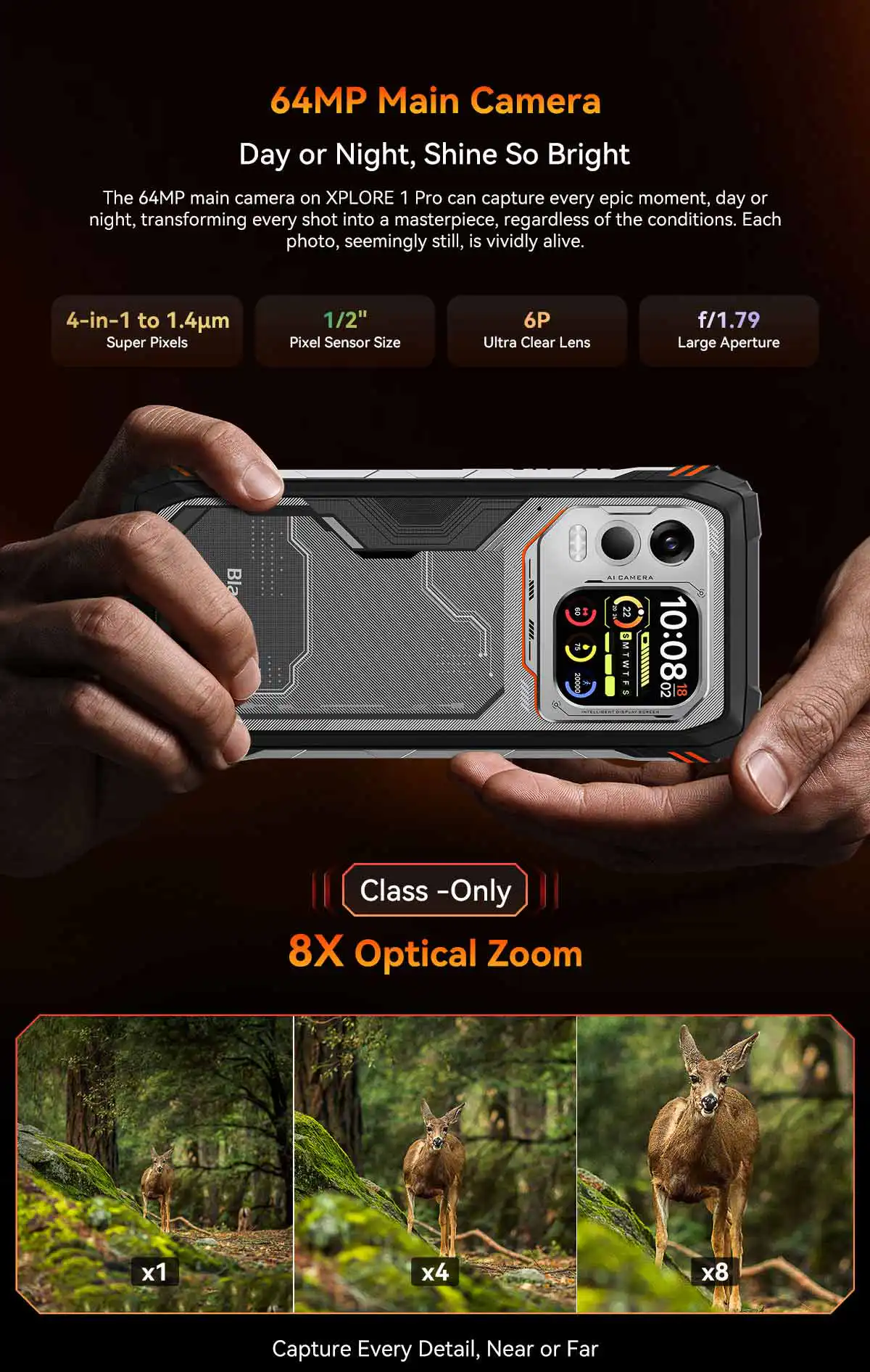

Rear Camera 64MP main camera

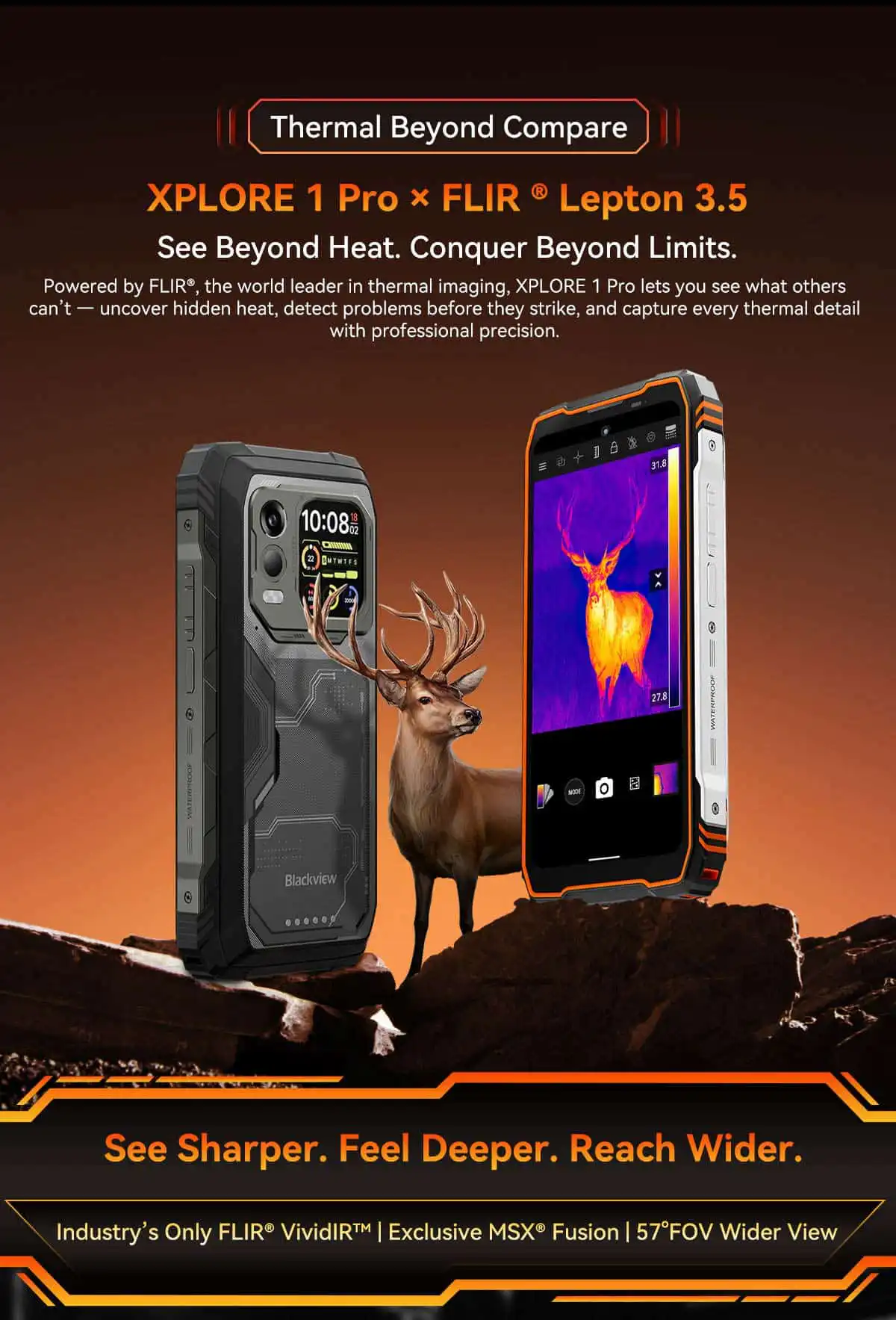

FLIR® Lepton® 3.5 Thermal Camera
Rear Camera Sensor OV64B40-GA5A-002A + Thermal imaging mode
Rear Camera Aperture f1.79
Rear Flash Yes
Video 4K Video Recording
Thermal Imaging Camera Datasheet

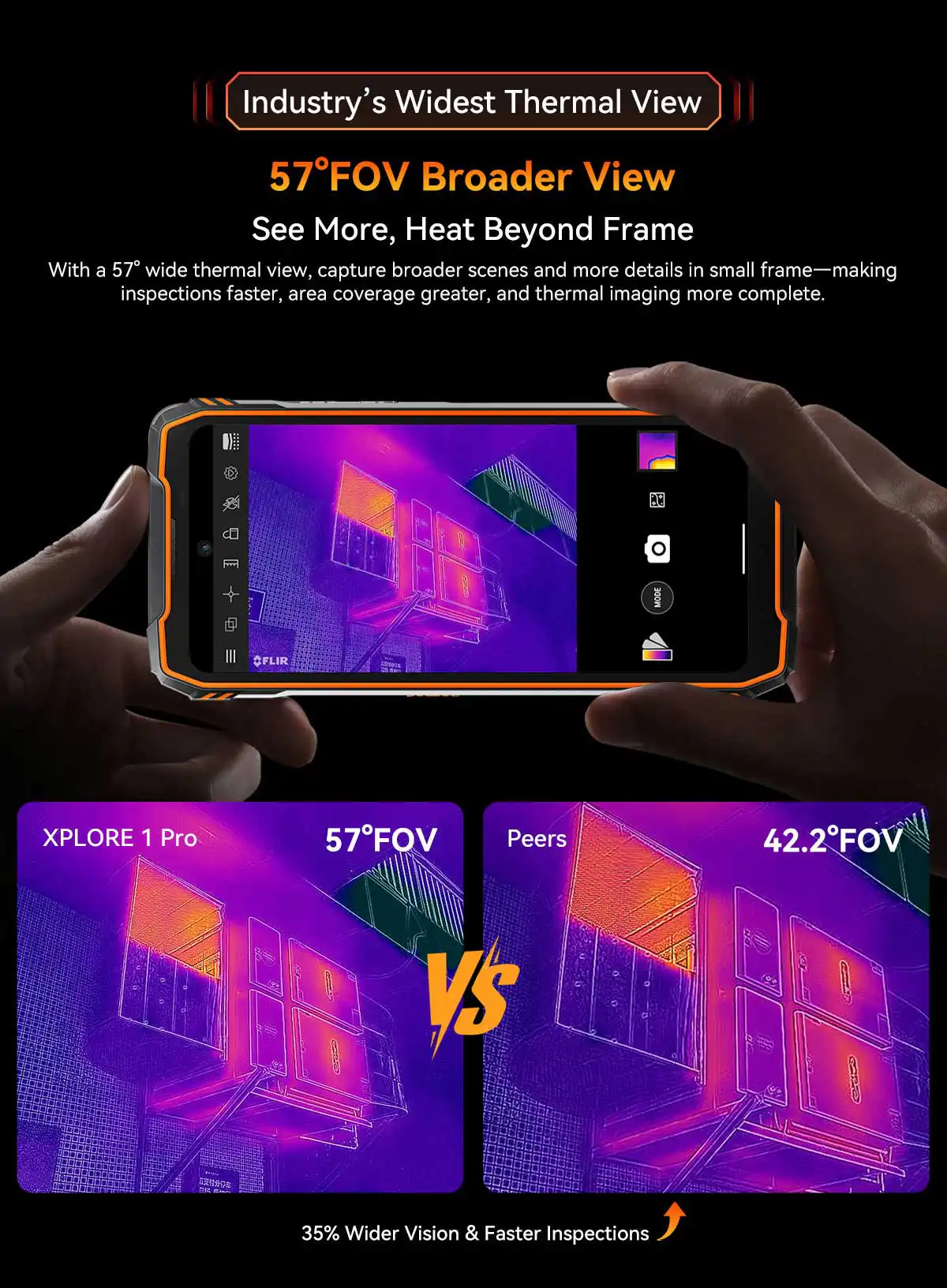

Model Lepton 3.5, 160×120, 57° with shutter
Thermal Imaging Detector Uncooled microbolometer
Pixel Size 12 µm
Frame Rate Options 8.7 Hz (commercial application exportable)
Thermal Spectral Range Longwave infrared, 8 µm to 14 µm

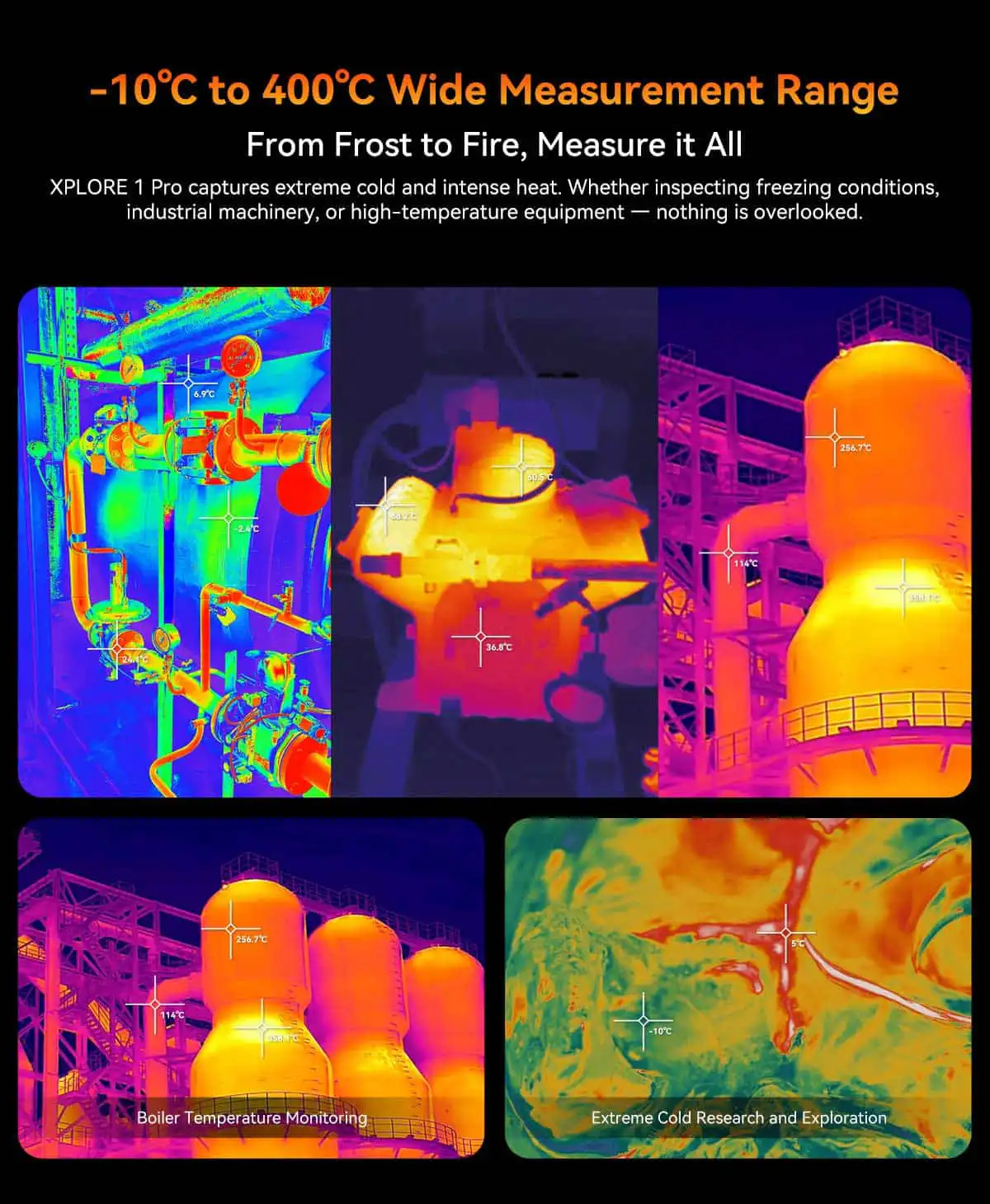

Scene Temperature Range High Gain Mode: -10 °C to 140 °C (14 °F to 284 °F)
Low Gain Mode: -10 °C to +400 °C (14 °F to 752 °F) at room temperature

Power

Battery Capacity 20,000mAh, 55W Fast Charge
Max Charging Current 20V/2.75A

Multi-media

Video mp4, 3gp, 3gpp, avi, flv
Audio ogg, aac, imy, amr, flac, mp3
Image jpeg\png\gif\bmp

Features

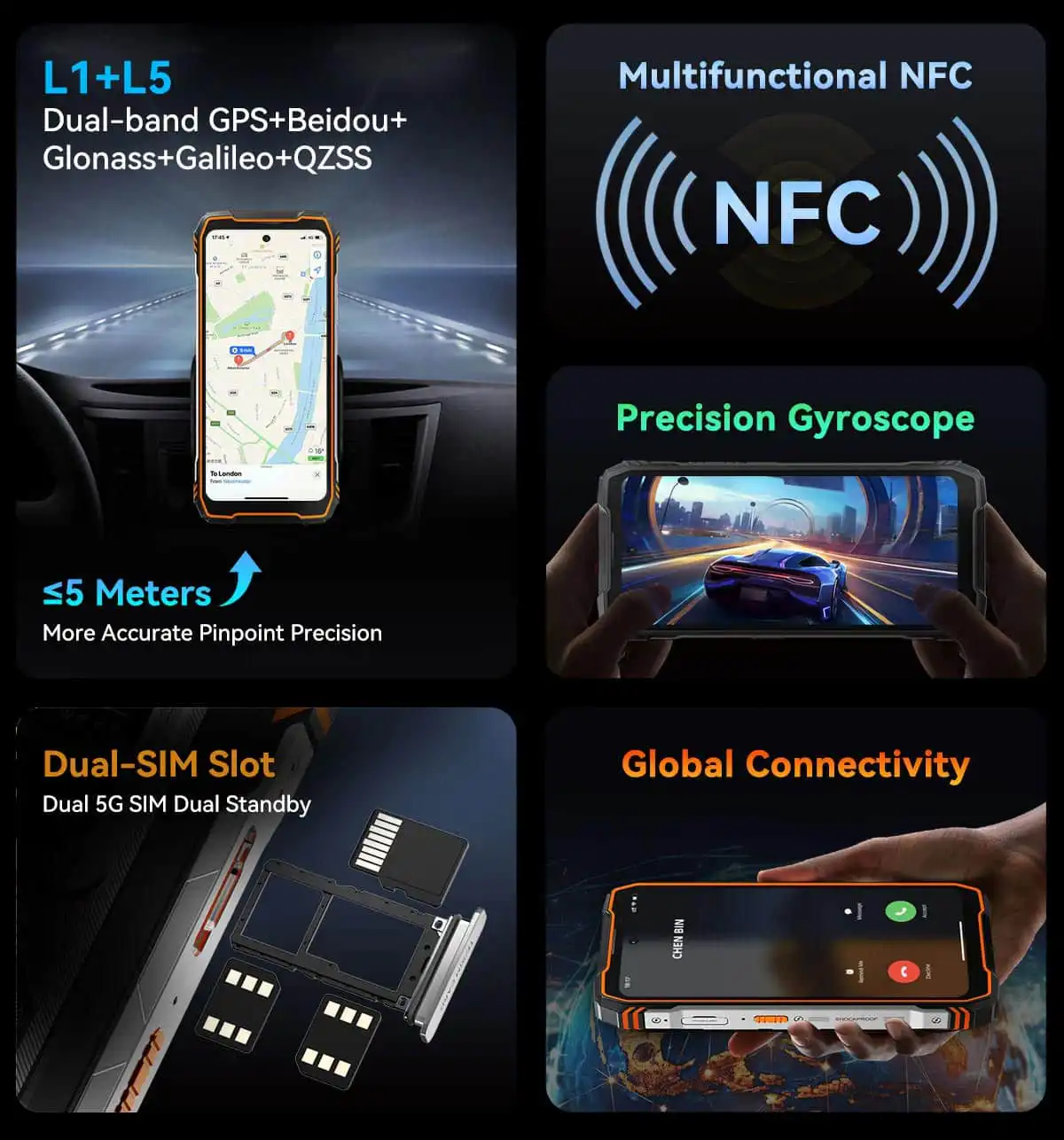

Navigation GPS/GLONASS/BeiDou/Galileo/QZSS
Motor Flat motor
Sensors G/P/L-sensor
Gyroscope YES
Magnetic YES
Air pressure sensor NO
Hall NO
Compass YES
Fingerprint YES
RGB NO
NFC YES
Hotkont NO
Coulomb Counter YES
Wireless Charging NO
Sim-Card Type Two nano card
FM YES
OTG YES
Earphones Jack Type TYPE-C

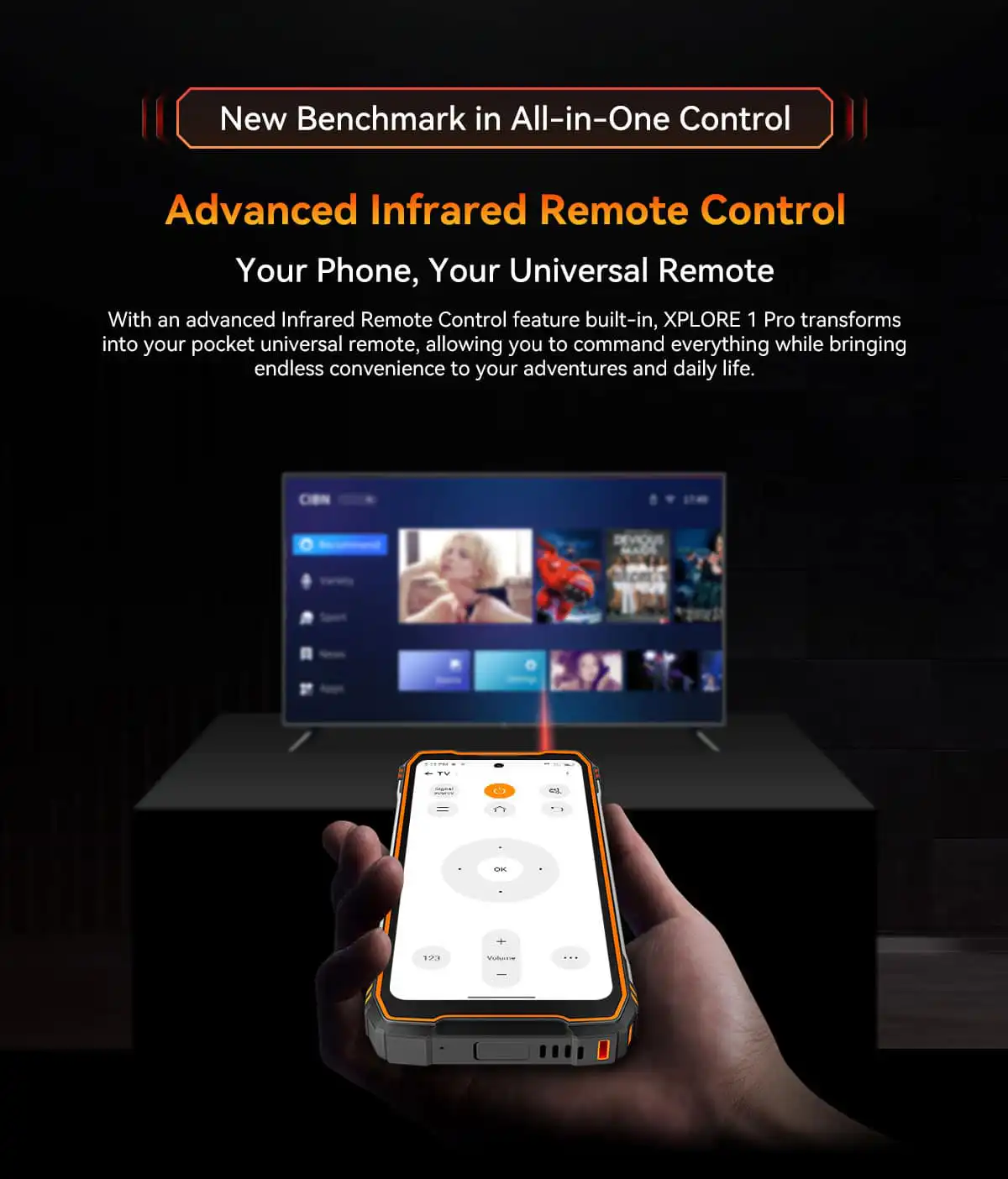

Infrared Remote Control YES
